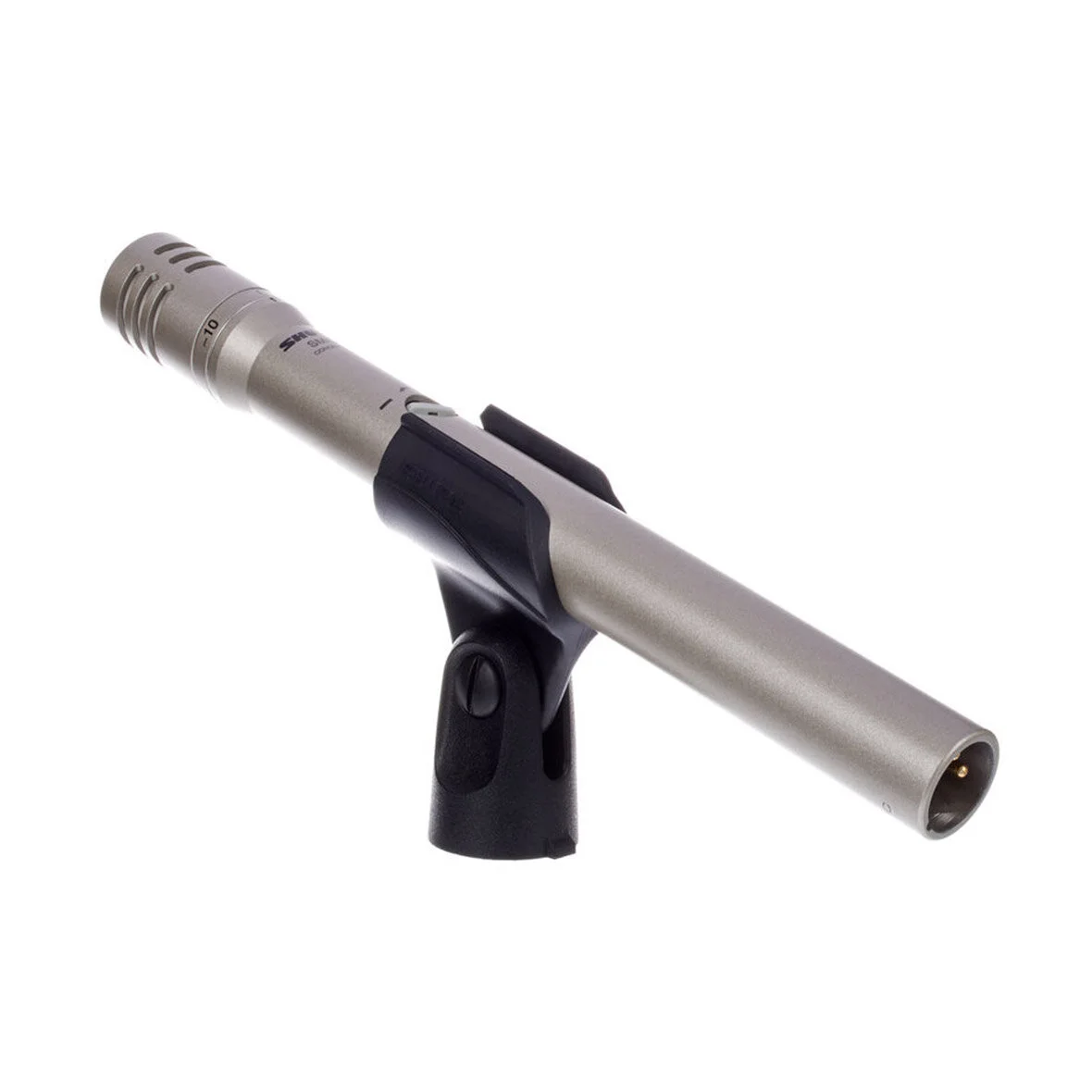

SHURE SM81

Condenser Instrument Microphone

book now

Features

Cardioid condenser instrument microphone offers a wide frequency response and low self-noise. Features include flat response curve, low noise and high output clipping level, low distortion over a range of load impedances, and low RF susceptibility.

The Shure SM81 is a high-quality, directed condenser microphone with cardioid directivity designed for studio recording, broadcasting, TV recordings and public addressing. Its very linear, wide frequency range, low inherent noise and low noise sensitivity at high-frequencies, have made the SM81 the standard for recording acoustic instruments such as guitar, piano and drums. This extremely robust microphone operates on phantom power and performs reliably over under extreme temperatures and humidity conditions. The SM81 is equipped with a three-way switchable high-pass filter and 10 dB attenuation. Foam windscreen, and case for carrying and storage are included.

Cardioid directivity for maximum isolation of the signal source and reduced background noise
High quality, permanently polarised condenser microphone
Linear frequency response for precise sound reproduction
Low inherent noise and high overdrive protection
Distortion-free recordings even at high sound pressure
Low sensitivity to interference at high-frequencies
3-Step switchable high-pass filter: Linear, 6 or 18 dB / octave reduction
Switchable 10 dB attenuation
Phantom power in accordance with DIN 45 596 with voltage from 12 to 48 V
Robust steel version
Can be used even under extreme temperature and humidity conditions
Frequency range: 20 Hz / 20 kHz
Output impedance: 85 Ohm
Sensitivity: -45 dBV / Pa (5.62 mV)
Total Harmonic Distortion (131 dB SPL at 250 Hz, 800 Ohm load): < 0.5 %
Maximum sound pressure (at 1 kHz, 800 Ohm load): 136 dB SPL
