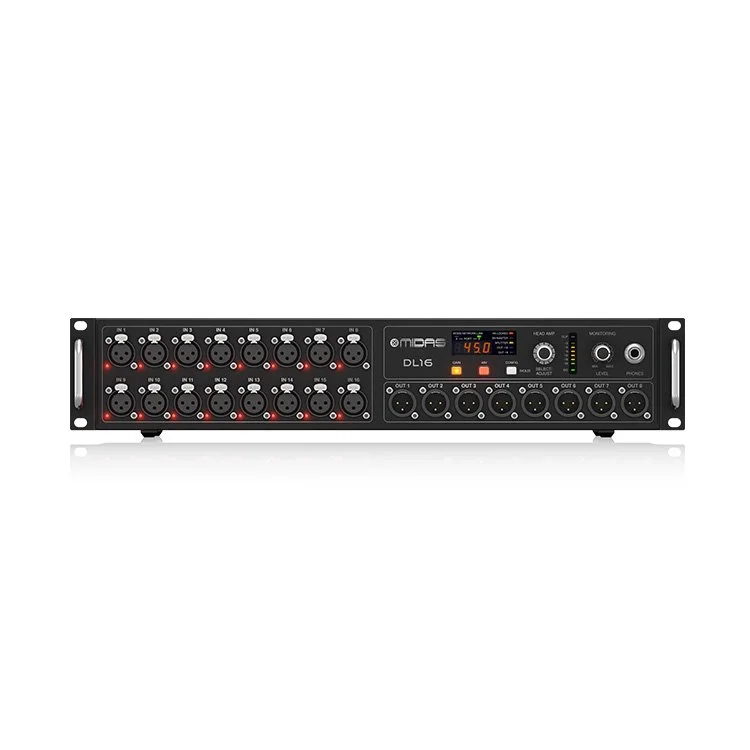

MIDAS DL16

Channel Stage Box


Overview

16 Input, 8 Output Stage Box with 16 Midas Microphone Preamplifiers, ULTRANET and ADAT Interfaces

Product Features

  • 16 award-winning Midas PRO microphone preamplifiers with switchable 48 V phantom power

  • 8 electronically balanced low impedance line level outputs

  • ULTRANET personal monitoring system connectivity for in-ear applications

  • Digital audio and control connectivity for Turbosound speaker systems with ULTRANET networking capability

  • Dual AES50 SuperMAC ports for cascading additional DL16 stageboxes-no merger or router required

  • Dual ADAT outputs providing 16-channel digital output on two optical TOSLINK* connectors

  • Remote operation via shielded CAT5e cable up to 330 ft / 100 m length

  • All settings programmable from front panel controls or console

  • Status indicator LEDs on front panel

  • Headphones output assignable to any of the inputs or outputs for on-stage monitoring

  • MIDI In/Out for bidirectional communication between Midas M32 Series console and on-stage MIDI devices

  • Features Neutrik etherCON* AES50 and ULTRANET network ports

  • Rugged 2U rackmount chassis for durability in portable applications

  • Auto-ranging universal switch-mode power supply
